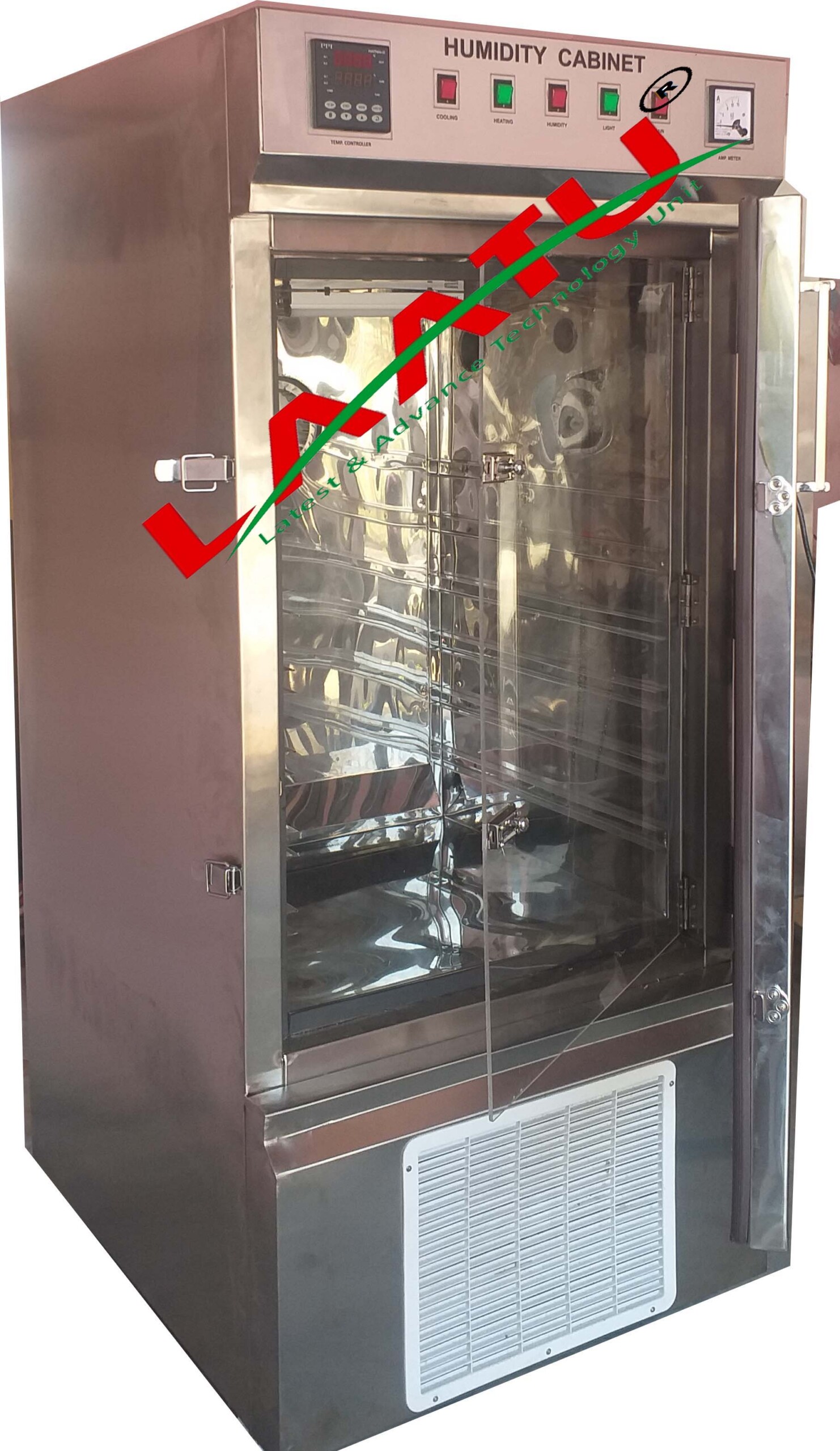

HUMIDITY CABINET

Description

BRAND- LAATU

MODEL NO- PRYG-003

Humidity Chamber offered are backed by latest technology support so as to provide precise relative humidity as well as temperature management. The solutions offered here are available in form of reach-in chambers, walk-in rooms, virtual humidity generators for serving existing structures. Further, our expertise also lies in matching up with the demands of precise humidity control systems as demanded by our customers. provided to the system.

Features :

Double walled finish
Outside mild steel powder coated as well as puff insulation support
Stainless steel perforated adjustable shelves
Temperature control from 10^oc to 60ï¿½ c (+/- 5%)
Humidity control from 55% to 90% (+/- 5%)
Digitally controlled interface
Available in sizes of 455 x 455 x 710, 605 x 605 x 605, 605 x 605 x 910mm (wxdxh)
Coming with wheel support for mobility
Provides working on 220 v ac supply
Chamber comprising highly polished stainless steel sheet finish
Inner compartment featuring stainless steel adjustable shelves
Quality motor blower for forced air circulation
Precision air ducting support for allowing positive air flow
System designed to maintain constant temperatures in chamber
For avoiding thermal loss, system comes with puff insulation provided between inner and outer walls
Equipment fitted with hermetically sealed compressor with CFC free refrigerant
2 doors support with inner full length transparent door
Sturdy hinge support and magnetic gasket provided for double walled main door
Automatic temperature control provided through digital temperature controller and indicator
System supporting PID with pt. 100 sensor

Technical Specifications :

Temp. 10^oc to 60ï¿½ c. Humidity 55% to 90% +/- 5%
Electric Supply 220/230V AC, 50/60Hz
Type: Forced Convection Type
Compressor: Hermetically Sealed Compressor
Temperature Control: Microprocessor Based Digital Temperature Controller Cum Indicator
Temperature Range: 5^oc – 60^oc +/-1^oc
Humidity Creation: By Steam Injection
Humidity Controller: Digital Humidity Indicator-Cum-Controller.
Humidity Range: 5% Above Ambient From 55% – 95%RH±3%RH At Cool Temperatures
MOC Outer: Mild Steel Powder Coated
MOC Inner: Stainless Steel
Safety: Thermostat
Insulation: PUFF
Inner Size (WxDxH): 455 x 410 x 610mm, 505 x 415 x 830mm, 570 x 550 x 875mm, 650 x 580 x 900mm

Other Specifications

Capacity	112 L	171 L	280 L	340 L
Volume	4 Cft	6.1 Cft	10 Cft	12 Cft
No. of Trays	2	2	3	3

Applications :

Cosmetics Industry
Plant / Insect Growth
Packaging Industry

Optional:

(I)Hygrometer (Humidity Indicator).
(II)Digital Temp. Controller-cum-Indicator..
(iii))Microprocessor PID digital temp. Indicator-cum-Controller.
(iv))Automatic electronic controller with digital display for Temp.
& Humidity combined.
